CLASSY Observation Details

The following table contains details of the COS observations for all of the CLASSY targets. Each target has FUV (G130M+G160M) and NUV (G185M/G225M) observations taken over various cenwave settings, from both CLASSY (HST Proposal 15840) and archival data sets.

Download table in csv format

    COS Acq/Image COS Spectra
Target z Proposal ID Dataset Exposure Time (sec) Mirror GFWHM* (arcsec) PA (deg) Dataset Grating Exposure Time (sec) Cenwave Rest Wavelength Coverage Lifetime Position* Acquisition Image*
                        Min Max
J0021+0052 0.098393 13017 LC3402S0Q 400 B 0.222 112 LC3402010 G130M 1060 1291 1031.23 1305.68 2 J0021+0052_acq
J0021+0052 0.098393 13017 LC3402S0Q 400 B 0.222 112 LC3402020 G160M 2380 1611 1291.65 1629.59 2 J0021+0052_acq
J0021+0052 0.098393 15840 LE2404UWQ 43 A 0.197 111 LE2404020 G185M 882 1913 1631.03 1855.13 N/A J0021+0052_acq
J0021+0052 0.098393 15840 LE2404UWQ 43 A 0.197 111 LE2404010 G185M 882 1986 1702.17 1923.81 N/A J0021+0052_acq

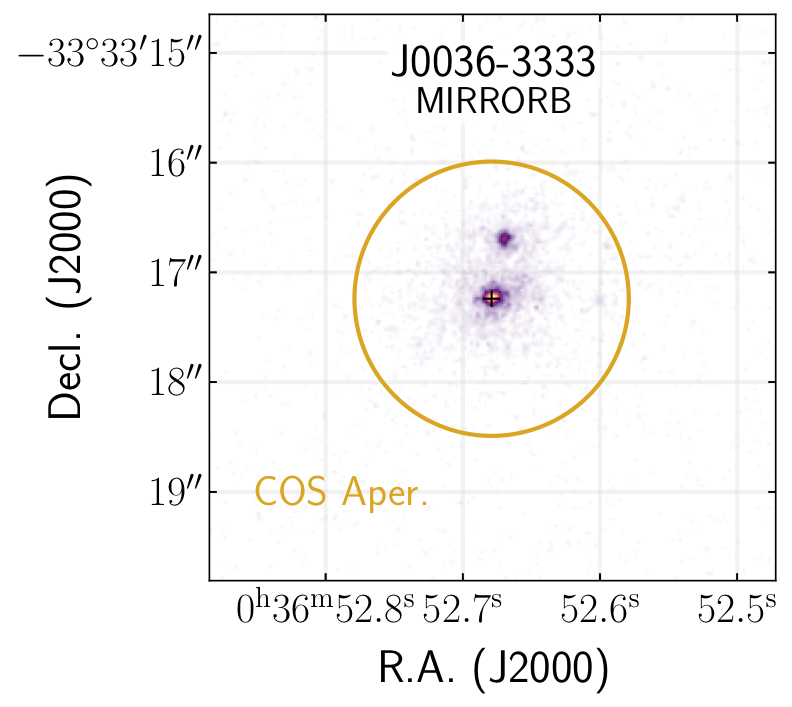

J0036-3333 0.020598 13017 LC3401LTQ 596 B 0.105 259 LC3401010 G130M 1536 1309 1128.57 1423.82 2 J0036-3333_acq
J0036-3333 0.020598 13017 LC3401LTQ 596 B 0.105 259 LC3401020 G160M 2364 1623 1401.95 1765.35 2 J0036-3333_acq
J0036-3333 0.020598 15840 LE2401J0Q 22 A 0.100 259 LE2401010 G185M 944 1835 1679.94 1923.69 N/A J0036-3333_acq
J0127-0619 0.005400 15840 LE2446IEQ 55 A 0.081 107 LE2446030 G130M 2384 1291 1124.44 1420.8 4 J0127-0619_acq
J0127-0619 0.005400 15840 LE2446IEQ 55 A 0.081 107 LE2446020 G160M 2868 1600 1399.54 1768.26 4 J0127-0619_acq
J0127-0619 0.005400 15840 LE2446IEQ 55 A 0.081 107 LE2446010 G185M 968 1913 1782.68 2031.04 N/A J0127-0619_acq
J0144+0453 0.005200 15840 LE2430COQ 162 A 0.127 111 LE2430010 G130M 6822 1291 1125.38 1421.68 4 J0144+0453_acq
J0144+0453 0.005200 14679 LD9P05PEQ 88 A 0.134 283 LD9P05020 G160M 2605 1623 1423.2 1792.41 4 J0144+0453_acq
J0144+0453 0.005200 14679 LD9P05PEQ 88 A 0.134 283 LD9P05010 G185M 2108 1921 1789.52 2037.52 N/A J0144+0453_acq

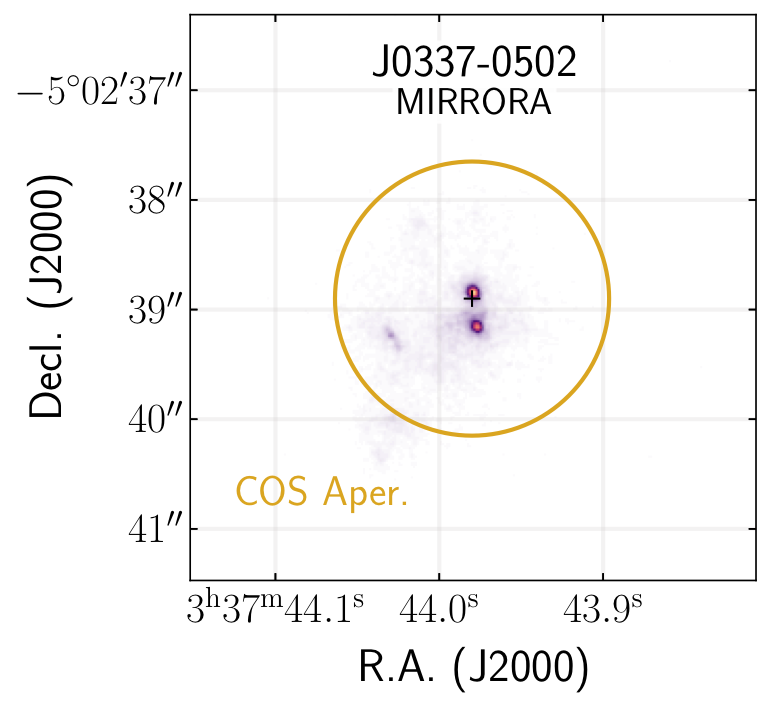

J0337-0502 0.013520 15193 LDN759R8Q 40 A 0.081 302 LDN759010 G130M 4581 1222 1051.92 1348.8 4 J0337-0502_acq
J0337-0502 0.013520 13788 LCNE03SGQ 510 B 0.158 308 LCNE03010 G160M 4959 1611 1399.88 1765.9 3 J0337-0502_acq
J0337-0502 0.013520 15193 LDN709PNQ 40 A 0.127 132 LDN709020 G160M 5605 1623 1411.33 1777.83 4 J0337-0502_acq
J0337-0502 0.013520 15193 LDN759R8Q 40 A 0.081 302 LDN759020 G160M 5345 1623 1411.32 1777.46 4 J0337-0502_acq
J0337-0502 0.013520 13788 LCNE03SGQ 510 B 0.158 308 LCNE03020 G185M 5675 1835 1688.7 1937.66 N/A J0337-0502_acq
J0405-3648 0.002800 15840 LE2426TIQ 221 A -0.083 2 LE2426010 G130M 9464 1291 1128.6 1425.03 4 J0405-3648_acq
J0405-3648 0.002800 14679 LD9P51T5Q 88 A -0.081 231 LD9P51020 G160M 2665 1623 1426.65 1796.58 4 J0405-3648_acq
J0405-3648 0.002800 14679 LD9P51T5Q 88 A -0.081 231 LD9P51010 G185M 2164 1913 1786.81 2036.08 N/A J0405-3648_acq
J0808+3948 0.091230 11727 LB5B03FUQ 93 B 0.085 322 LB5B03010 G130M 5510 1291 1038.05 1314.0 1 J0808+3948_acq
J0808+3948 0.091230 11727 LB5B03FUQ 93 B 0.085 322 LB5B03020 G160M 6080 1577 1268.87 1607.41 1 J0808+3948_acq
J0808+3948 0.091230 15840 LE2405XDQ 87 A 0.080 81 LE2405020 G185M 2304 1900 1627.91 1857.23 N/A J0808+3948_acq
J0808+3948 0.091230 15840 LE2405XDQ 87 A 0.080 81 LE2405010 G185M 1764 1917 1695.07 1921.99 N/A J0808+3948_acq

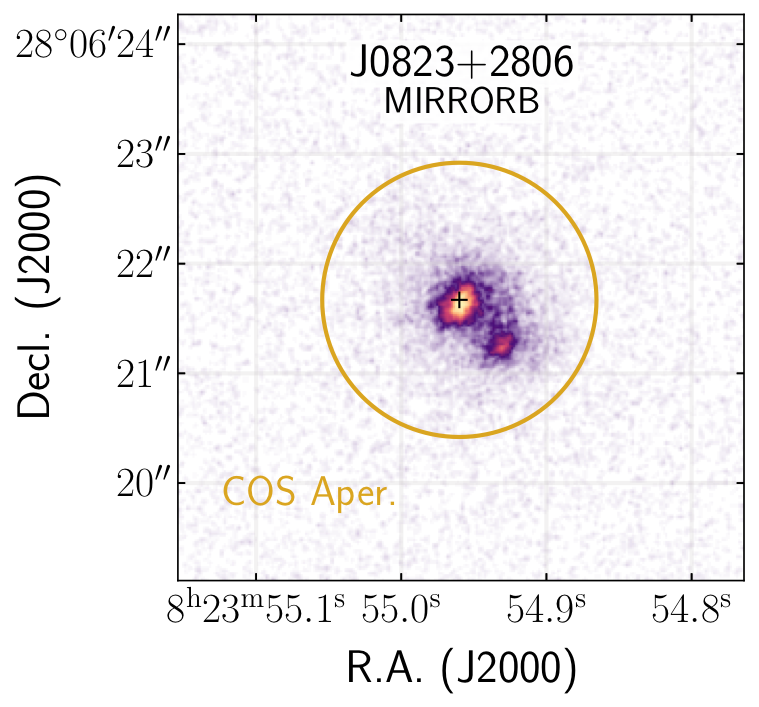

J0823+2806 0.047223 13017 LC3403DJQ 400 B 0.245 137 LC3403010 G130M 1060 1222 1018.19 1305.49 2 J0823+2806_acq
J0823+2806 0.047223 13017 LC3403DJQ 400 B 0.245 137 LC3403020 G160M 2380 1577 1321.34 1675.13 2 J0823+2806_acq
J0823+2806 0.047223 15840 LE2403GGQ 72 A 0.134 350 LE2403010 G185M 1788 1986 1781.54 2017.63 N/A J0823+2806_acq

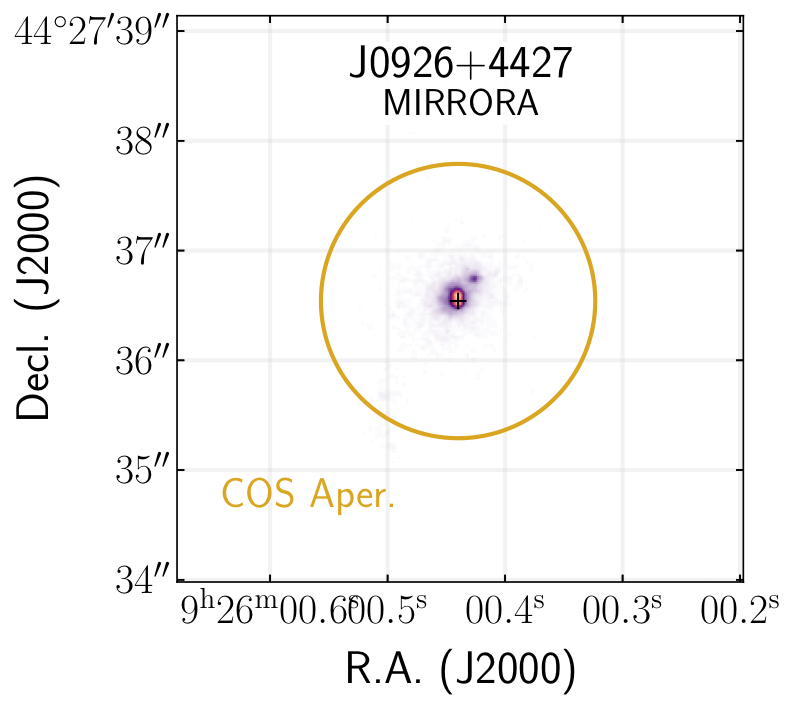

J0926+4427 0.180667 11727 LB5B05MWQ 85 A 0.121 338 LB5B05010 G130M 5640 1300 967.74 1222.75 1 J0926+4427_acq
J0926+4427 0.180667 11727 LB5B05MWQ 85 A 0.121 338 LB5B05020 G160M 6180 1611 1202.23 1515.52 1 J0926+4427_acq
J0926+4427 0.180667 15840 LE2411ZJQ 72 A 0.113 61 LE2411030 G185M 4929 1835 1448.99 1662.81 N/A J0926+4427_acq
J0926+4427 0.180667 15840 LE2411ZJQ 72 A 0.113 61 LE2411020 G185M 2304 1864 1474.14 1687.13 N/A J0926+4427_acq
J0926+4427 0.180667 15840 LE2411ZJQ 72 A 0.113 61 LE2411010 G225M 1864 2339 189.48 2080.59 N/A J0926+4427_acq
J0934+5514 0.002500 15193       0.1 143 LDN707010 G130M 2352 1222 1063.63 1363.81 4 J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L1A030 G130M   1291 0.0 0.0   J0934+5514_acq
J0934+5514 0.002500 11579 LB7H71BSQ 627 A 0.1 76 LB7H71010 G130M 7762 1291 1129.78 1430.26 1 J0934+5514_acq
J0934+5514 0.002500 11579 LB7H72TNQ 2372 A 0.8 76 LB7H72010 G130M 7762 1291 1129.73 1430.31 1 J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L2A0C0 G160M 1768 1589 1395.93 1755.57 4 J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L2A0D0 G160M 1530 1600 1407.26 1766.98 4 J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L2A0E0 G160M 2140 1611 1418.84 1778.63 4 J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L2A0F0 G160M 1872 1623 1430.86 1790.72 4 J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L2A0G0 G185M 2098 1900 1772.11 2016.11 N/A J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L2A0H0 G185M 4049 1913 1787.06 2030.67 N/A J0934+5514_acq
J0934+5514 0.002500 11523 ACQ/SEARCH*         LB6L2A0I0 G185M 1949 1921 1794.54 2037.84 N/A J0934+5514_acq
J0938+5428 0.102102 11727 LB5B02QJQ 162 B 0.157 18 LB5B02010 G130M 2280 1291 1027.86 1301.03 1 J0938+5428_acq
J0938+5428 0.102102 11727 LB5B02QJQ 162 B 0.157 18 LB5B02020 G160M 2990 1600 1277.24 1612.84 1 J0938+5428_acq
J0938+5428 0.102102 15840 LE2417HLQ 87 A 0.167 110 LE2417010 G185M 1780 1921 1632.73 1858.98 N/A J0938+5428_acq
J0938+5428 0.102102 15840 LE2417HLQ 87 A 0.167 110 LE2417020 G185M 2320 2010 1716.04 1939.5 N/A J0938+5428_acq
J0940+2935 0.001675 15840 LE2427RPQ 156 A 0.078 83 LE2427010 G130M 6864 1291 1129.65 1426.65 4 J0940+2935_acq
J0940+2935 0.001675 14679 LD9P06EJQ 88 A 0.305 345 LD9P06020 G160M 2624 1623 1428.08 1798.67 4 J0940+2935_acq
J0940+2935 0.001675 14679 LD9P06EJQ 88 A 0.305 345 LD9P06010 G185M 2124 1913 1788.13 2037.82 N/A J0940+2935_acq
J0942+3547 0.014857 15099 LDNA02CIQ 99 A 0.091 320 LDNA02010 G130M 10755 1291 1115.36 1408.05 4 J0942+3547_acq
J0942+3547 0.014857 14168 LCY410BAQ 92 A 0.091 113 LCY410020 G160M 2665 1623 1410.11 1775.52 3 J0942+3547_acq
J0942+3547 0.014857 14168 LCY410BAQ 92 A 0.091 113 LCY410010 G185M 2156 1835 1685.83 1934.77 N/A J0942+3547_acq
J0944+3424 0.020046 15840 LE2448CBQ 91 A 0.392 94 LE2448030 G130M 3106 1291 1109.14 1400.45 4 J0944+3424_acq
J0944+3424 0.020046 15840 LE2448CBQ 91 A 0.392 94 LE2448020 G160M 3821 1623 1402.55 1766.32 4 J0944+3424_acq
J0944+3424 0.020046 15840 LE2448CBQ 91 A 0.392 94 LE2448010 G185M 1756 1853 1677.63 1925.25 N/A J0944+3424_acq

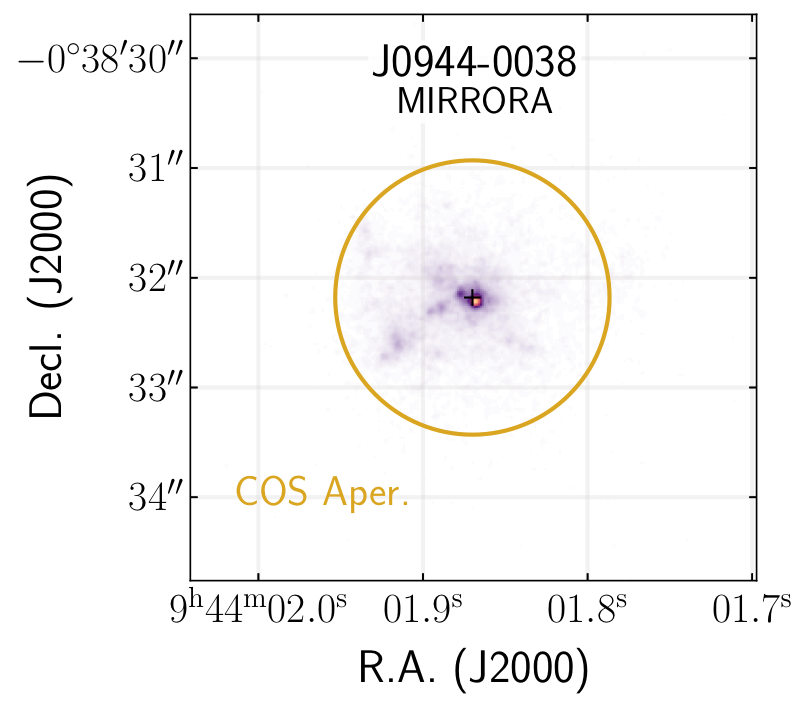

J0944-0038 0.004776 15840 LE2422P1Q 223 A 0.252 222 LE2422010 G130M 4319 1291 1129.92 1422.18 4 J0944-0038_acq
J0944-0038 0.004776 15840 LE2456S7Q 223 A 0.101 334 LE2456010 G130M 1767 1291 0.0 0.0 4 J0944-0038_acq
J0944-0038 0.004776 15646 LDXT03E2Q 43 A     LDXT03010 G160M 13463 1533 0.0 0.0 4 J0944-0038_acq
J0944-0038 0.004776 15646 LDXT04COQ 43 A     LDXT04010 G160M 13463 1533 0.0 0.0 4 J0944-0038_acq
J0944-0038 0.004776 14120 LCYC01KOQ 38 B   329 LCYC01010 G160M 5083 1589 1389.36 1757.46 3 J0944-0038_acq
J0944-0038 0.004776 14168 LCY408BUQ 43 A 0.130 326 LCY408020 G160M 2577 1623 1424.29 1793.49 3 J0944-0038_acq
J0944-0038 0.004776 14168 LCY408BUQ 43 A 0.130 326 LCY408010 G185M 2168 1921 1790.41 2038.58 N/A J0944-0038_acq
J1016+3754 0.003879 15220 LDKM07JXQ 8 B   11 LDKM07010 G140L 2267 1105 1103.78 2267.33 4 J1016+3754_acq
J1016+3754 0.003879 15840 LE2441HBQ 0 B   95 LE2441020 G130M 1138 1291 1127.34 1423.43 4 J1016+3754_acq
J1016+3754 0.003879 14120 LCYC02S4Q 69 B 0.311 349 LCYC02010 G160M 5217 1589 1390.13 1759.01 3 J1016+3754_acq
J1016+3754 0.003879 15840 LE2441HBQ 0 B   95 LE2441010 G185M 356 1913 1784.16 2033.24 N/A J1016+3754_acq
J1024+0524 0.033191 15840 LE2421RSQ 54 A 0.119 167 LE2421010 G130M 4297 1222 1032.2 1323.43 4 J1024+0524_acq
J1024+0524 0.033191 14168 LCY409AOQ 75 A 0.110 331 LCY409020 G160M 2609 1577 1339.28 1697.78 3 J1024+0524_acq
J1024+0524 0.033191 14168 LCY409AOQ 75 A 0.110 331 LCY409010 G185M 2136 1971 1790.52 2030.09 N/A J1024+0524_acq
J1025+3622 0.126500 13017 LC3405FDQ 200 A 0.108 8 LC3405020 G130M 2368 1300 1013.74 1281.47   J1025+3622_acq
J1025+3622 0.126500 13017 LC3405FDQ 200 A 0.108 8 LC3405010 G160M 4401 1623 1270.05 1599.39   J1025+3622_acq
J1025+3622 0.126500 15840             G185M   1864 0.0 0.0 N/A J1025+3622_acq
J1025+3622 0.126500 15840             G225M   2233 0.0 0.0 N/A J1025+3622_acq
J1044+0353 0.012870 15220 LDKM01F5Q 1 A 0.293 319 LDKM01010 G140L 2221 1105 1094.06 2246.41 4 J1044+0353_acq
J1044+0353 0.012870 13312 ACQ/PEAKD*         LCAW13010 G140L 2066 1280 34.69 2404.87   J1044+0353_acq
J1044+0353 0.012870 15840 LE2438AAQ 146 A 0.749 163 LE2438010 G130M 6854 1291 1116.98 1410.94 4 J1044+0353_acq
J1044+0353 0.012870 15646 LDXT08L8Q 0 A     LDXT08010 G160M 13183 1522 0.0 0.0   J1044+0353_acq
J1044+0353 0.012870 15646 LDXT07ACQ 182 A     LDXT07010 G160M 13183 1533 0.0 0.0 4 J1044+0353_acq
J1044+0353 0.012870 15465 LDSZ01V6Q 183 A 0.703 338 LDSZ01010 G160M 6439 1589 1377.26 1743.25 4 J1044+0353_acq
J1105+4444 0.021540 15840 LE2440KUQ 54 B 0.451 90 LE2440020 G130M 2388 1222 1044.05 1333.55 4 J1105+4444_acq
J1105+4444 0.021540 14120 LCYC10EHQ 20 B   44 LCYC10010 G160M 8462 1589 1366.32 1728.66 3 J1105+4444_acq
J1105+4444 0.021540 15840 LE2440KUQ 54 B 0.451 90 LE2440010 G185M 1828 1941 1780.9 2024.45 N/A J1105+4444_acq

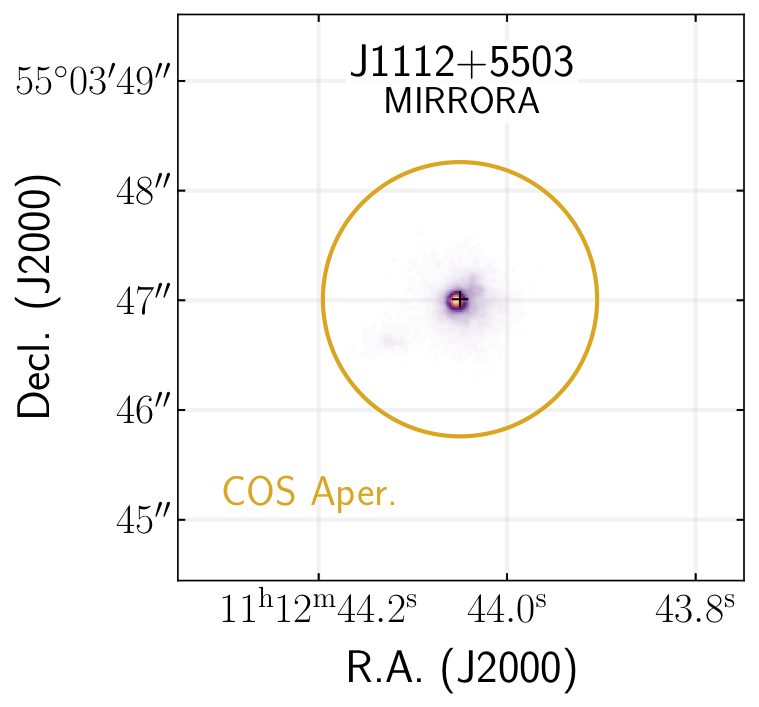

J1112+5503 0.131635 13017 LC3408MGQ 150 A 0.114 177 LC3408020 G130M 2405 1300 1009.08 1275.52 2 J1112+5503_acq
J1112+5503 0.131635 13017 LC3408MGQ 150 A 0.114 177 LC3408010 G160M 4573 1623 1264.48 1592.33 2 J1112+5503_acq
J1119+5130 0.004458 15220 LDKM05UGQ 13 B 0.079 173 LDKM05010 G140L 2364 1105 1101.84 2265.58 4 J1119+5130_acq
J1119+5130 0.004458 15840 LE2428A2Q 83 A 0.281 33 LE2428010 G130M 4323 1291 1126.52 1422.7 4 J1119+5130_acq
J1119+5130 0.004458 14679 LD9P03ZZQ 88 A 0.648 85 LD9P03020 G160M 2801 1623 1424.17 1793.65 4 J1119+5130_acq
J1119+5130 0.004458 14679 LD9P03ZZQ 88 A 0.648 85 LD9P03010 G185M 2300 1921 1789.12 2037.43 N/A J1119+5130_acq
J1129+2034 0.004703 15840 LE2423C2Q 146 A 0.136 140 LE2423010 G130M 6886 1291 1126.26 1422.37 4 J1129+2034_acq
J1129+2034 0.004703 14168 LCY402BSQ 53 A 0.136 7 LCY402020 G160M 2588 1623 1424.43 1793.41 3 J1129+2034_acq
J1129+2034 0.004703 14168 LCY402BSQ 53 A 0.136 7 LCY402010 G185M 2160 1817 1685.05 1936.86 N/A J1129+2034_acq
J1132+1411 0.017637 15840 LE2432BNQ 107 A 0.172 143 LE2432010 G130M 4560 1291 1112.31 1404.33 4 J1132+1411_acq
J1132+1411 0.017637 15185 LDI202E4Q 9 A 0.203 340 LDI202020 G160M 2604 1623 1405.29 1770.28 4 J1132+1411_acq
J1132+1411 0.017637 15185 LDI202E4Q 9 A 0.203 340 LDI202010 G185M 2264 1941 1785.27 2029.75 N/A J1132+1411_acq

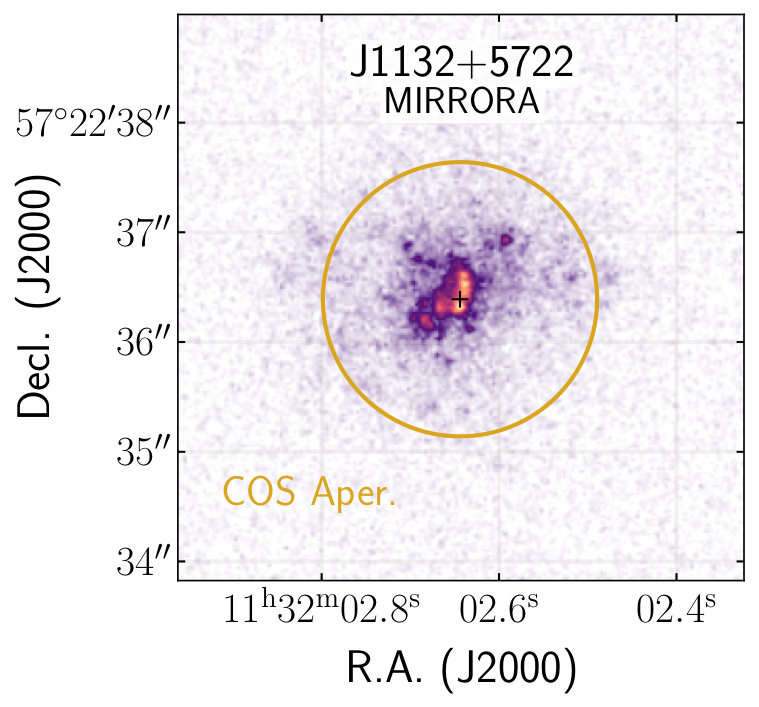

J1132+5722 0.005041 15840 LE2436TEQ 369 A 0.399 10 LE2436010 G130M 6676 1291 0.0 0.0 4 J1132+5722_acq
J1132+5722 0.005041 15840 LE2429E7Q 369 A 0.399 10 LE2429010 G130M 6676 1291 1125.76 1421.79 4 J1132+5722_acq
J1132+5722 0.005041 14679 LD9P02O8Q 88 A 0.342 320 LD9P02020 G160M 2852 1623 1423.49 1792.79 3 J1132+5722_acq
J1132+5722 0.005041 14679 LD9P02O8Q 88 A 0.342 320 LD9P02010 G185M 2352 1921 1789.95 2037.98 N/A J1132+5722_acq
J1144+4012 0.126947 13017 LC3405EOQ 200 A 0.382 166 LC3406020 G130M 2376 1300 1013.46 1280.81 2 J1144+4012_acq
J1144+4012 0.126947 13017 LC3405EOQ 200 A 0.382 166 LC3406010 G160M 4415 1623 1270.09 1598.94 2 J1144+4012_acq
J1144+4012 0.126947 15840 LE2413ACQ 146 A 0.411 316 LE2413020 G185M 3963 1864 1543.26 1766.49 N/A J1144+4012_acq
J1144+4012 0.126947 15840 LE2413ACQ 146 A 0.411 316 LE2413010 G225M 7939 2233 1877.99 2088.36 N/A J1144+4012_acq
J1148+2546 0.045117 15840 LE2424T3Q 109 A 0.135 28 LE2424010 G130M 4552 1222 1020.34 1303.27 4 J1148+2546_acq
J1148+2546 0.045117 14168 LCY405JHQ 95 A 0.160 1 LCY405020 G160M 2625 1589 1335.77 1689.86 3 J1148+2546_acq
J1148+2546 0.045117 14168 LCY405JHQ 95 A 0.160 1 LCY405010 G185M 2112 1890 1691.01 1930.78 N/A J1148+2546_acq
J1150+1501 0.002448 15840 LE2433I7Q 46 B 0.081 146 LE2433010 G130M 1970 1291 1128.81 1425.63 4 J1150+1501_acq
J1150+1501 0.002448 15185 LDI208K7Q 42 B 0.126 333 LDI208010 G160M 2120 1623 1426.8 1797.13 4 J1150+1501_acq
J1150+1501 0.002448 15185 LDI208K7Q 42 B 0.126 333 LDI203010 G185M 2200 1913 1786.53 2036.02 N/A J1150+1501_acq
J1157+3220 0.010970 15840 LE2439YGQ 20 B 0.253 332 LE2439010 G130M 802 1291 1119.06 1413.33 4 J1157+3220_acq
J1157+3220 0.010970 14120 LCYC09ALQ 11 B 0.217 353 LCYC09010 G160M 8286 1589 1380.66 1746.76 3 J1157+3220_acq
J1157+3220 0.010970 15840 LE2439YGQ 20 B 0.253 332 LE2439020 G185M 660 1817 1673.38 1923.75 N/A J1157+3220_acq
J1200+1343 0.066750 15840 LE2449AVQ 170 A 0.101 123 LE2449010 G130M 6790 1222 999.74 1281.76 4 J1200+1343_acq
J1200+1343 0.066750 15840 LE2450BVQ 0 A     LE2450010 G160M 11489 1623 1340.7 1688.87 4 J1200+1343_acq
J1200+1343 0.066750 15840 LE2449AVQ 170 A 0.101 123 LE2449020 G185M 4915 1941 1705.27 1938.52 N/A J1200+1343_acq
J1225+6109 0.002341 15840 LE2443L2Q 30 A 0.105 131 LE2443020 G130M 1202 1291 1128.92 1425.62 4 J1225+6109_acq
J1225+6109 0.002341 14120 LCYC08S5Q 37 A 0.089 27 LCYC08010 G160M 5699 1766 1392.45 1761.76 3 J1225+6109_acq
J1225+6109 0.002341 15840 LE2443L2Q 30 A 0.105 131 LE2443010 G185M 404 1900 1772.37 2022.21 N/A J1225+6109_acq

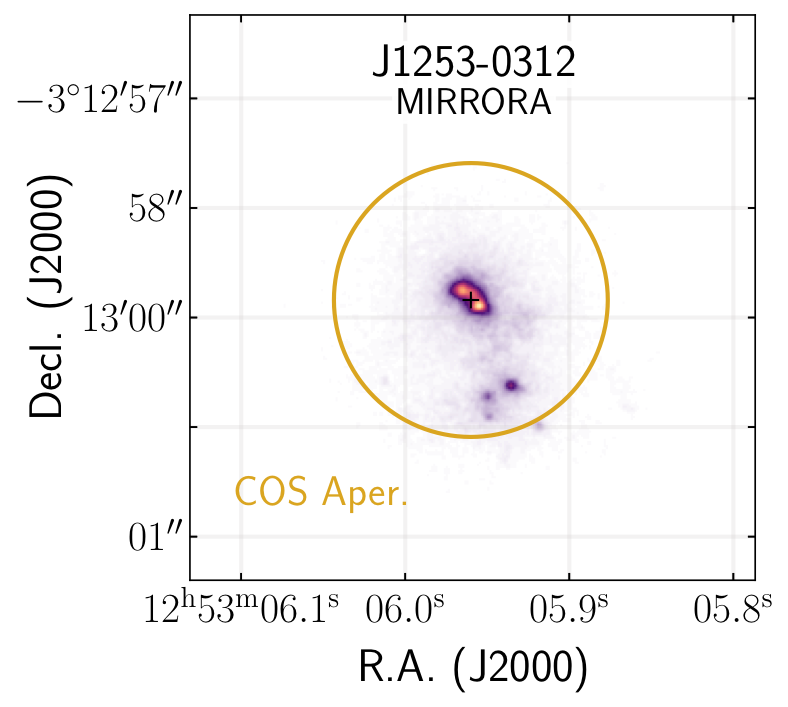

J1253-0312 0.022723 15840 LE2447GAQ 73 A 0.209 338 LE2447030 G130M 2380 1291 1105.16 1396.46 4 J1253-0312_acq
J1253-0312 0.022723 15840 LE2447GAQ 73 A 0.209 338 LE2447020 G160M 2848 1623 1398.69 1761.48 4 J1253-0312_acq
J1253-0312 0.022723 15840 LE2447GAQ 73 A 0.209 338 LE2447010 G185M 936 1941 1779.06 2022.19 N/A J1253-0312_acq
J1314+3452 0.002885 15840 LE2434TXQ 259 A 0.195 67 LE2434010 G130M 9388 1291 1128.46 1424.73 4 J1314+3452_acq
J1314+3452 0.002885 15185 LDI205AEQ 81 B 0.307 121 LDI205020 G160M 2497 1623 1426.38 1796.69 4 J1314+3452_acq
J1314+3452 0.002885 15185 LDI205AEQ 81 B 0.307 121 LDI205010 G185M 2084 1913 1785.32 2034.64 N/A J1314+3452_acq
J1323-0132 0.022464 14628 LDAF11HNQ 226 A 0.105 354 LDAF11010 G140L 1792 1280 32.36 2380.11 3 J1323-0132_acq
J1323-0132 0.022464 15840 LE2444ESQ 202 A 0.102 337 LE2444010 G130M 6914 1291 1106.76 1397.53 4 J1323-0132_acq
J1323-0132 0.022464 15840 LE2445H5Q 202 A 0.101 337 LE2445010 G160M 11391 1623 1398.79 1761.94 4 J1323-0132_acq
J1323-0132 0.022464 15840 LE2444ESQ 202 A 0.102 337 LE2444020 G185M 4907 1941 1778.49 2022.0 N/A J1323-0132_acq
J1359+5726 0.033829 13761 LCP153PGQ 0 B     LCP153010 G140L 600 1105 1074.97 2164.38 3 J1359+5726_acq
J1359+5726 0.033829 12583 LBQE05CBQ 139 B 0.107 60 LBQE05010 G130M 2167 1327 1135.27 1424.07 1 J1359+5726_acq
J1359+5726 0.033829 14120 LCYC03L9Q 89 B 0.110 201 LCYC03010 G160M 8648 1589 1350.1 1708.35 3 J1359+5726_acq
J1359+5726 0.033829 15840 LE2402HPQ 89 B 0.099 177 LE2402010 G185M 1776 1864 1684.15 1927.54 N/A J1359+5726_acq
J1416+1223 0.123156 13017 LC3410CKQ 100 A 0.103 152 LC3410020 G130M 2380 1291 1008.34 1276.75 2 J1416+1223_acq
J1416+1223 0.123156 13017 LC3410CKQ 100 A 0.103 152 LC3410010 G160M 4637 1611 1263.34 1593.66 2 J1416+1223_acq
J1416+1223 0.123156 15840   72 A 0.100 149 LE2409010 G185M 1864 1953 1632.46 1851.92 N/A J1416+1223_acq
J1416+1223 0.123156 15840   72 A 0.100 149 LE2409020 G225M 2383 2233 1887.43 2097.16 N/A J1416+1223_acq
J1418+2102 0.008550 14628 LDAF02B0Q 153 A 0.162 359 LDAF02010 G140L 1948 1280 33.51 2414.64 3 J1418+2102_acq
J1418+2102 0.008550 15840 LE2435XIQ 159 A 0.133 133 LE2435010 G130M 9590 1291 1121.72 1417.0 4 J1418+2102_acq
J1418+2102 0.008550 15840 LE2437UQQ 159 A 0.133 133 LE2437010 G130M 6860 1291 1121.65 1416.94 4 J1418+2102_acq
J1418+2102 0.008550 15465 LDSZ02IXQ 153 A 0.123 326 LDSZ02010 G160M 12374 1589 1382.94 1750.74 4 J1418+2102_acq
J1428+1653 0.181666 13017 LC3411ZLQ 200 A 0.163 181 LC3411020 G130M 2380 1300 966.6 1221.69 2 J1428+1653_acq
J1428+1653 0.181666 13017 LC3411ZLQ 200 A 0.163 181 LC3411010 G160M 4425 1611 1200.89 1514.8 2 J1428+1653_acq
J1428+1653 0.181666 15840 LE2412BJQ 109 A 0.115 171 LE2412020 G185M 6363 1835 1447.76 1661.41 N/A J1428+1653_acq
J1428+1653 0.181666 15840 LE2412BJQ 109 A 0.129 171 LE2453010 G185M 4333 1864 1472.9 1685.7 N/A J1428+1653_acq
J1428+1653 0.181666 15840 LE2412BJQ 109 A 0.129 171 LE2412010 G225M 3091 2250 1881.84 2078.83 N/A J1428+1653_acq
J1429+0643 0.173502 13017 LC3409V4Q 100 A 0.101 148 LC3409020 G130M 2380 1300 973.18 1230.04 2 J1429+0643_acq
J1429+0643 0.173502 13017 LC3409V4Q 100 A 0.101 148 LC3409010 G160M 4637 1600 1199.08 1515.09 2 J1429+0643_acq
J1429+0643 0.173502 15840 LE2416S0Q 146 A 0.099 153 LE2416020 G185M 4915 1941 1550.04 1762.14 N/A J1429+0643_acq
J1429+0643 0.173502 15840 LE2416S0Q 146 A 0.099 153 LE2416010 G225M 7025 2233 1804.79 2006.86 N/A J1429+0643_acq
J1444+4237 0.002300 15840 LE2425MMQ 110 A 0.108 72 LE2425010 G130M 4566 1291 1129.26 1425.63 4 J1444+4237_acq
J1444+4237 0.002300 15646 LDXT56SUS 88 A 0.518 256 LDXT05010 G160M 13853 1533 1336.41 1705.73 4 J1444+4237_acq
J1444+4237 0.002300 15646 LDXT06K4Q 88 A     LDXT06010 G160M 13206 1533 1336.52 1705.57 4 J1444+4237_acq
J1444+4237 0.002300 15646 LDXT56SUS 88 A     LDXT56010 G160M 2304 1533 1340.41 1700.0 4 J1444+4237_acq
J1444+4237 0.002300 14679 LD9P04NMQ 88 A 0.109 298 LD9P04020 G160M 2673 1623 1427.52 1797.77 3 J1444+4237_acq
J1444+4237 0.002300 14679 LD9P04NMQ 88 A 0.109 298 LD9P04010 G185M 2204 1913 1786.52 2035.86 N/A J1444+4237_acq

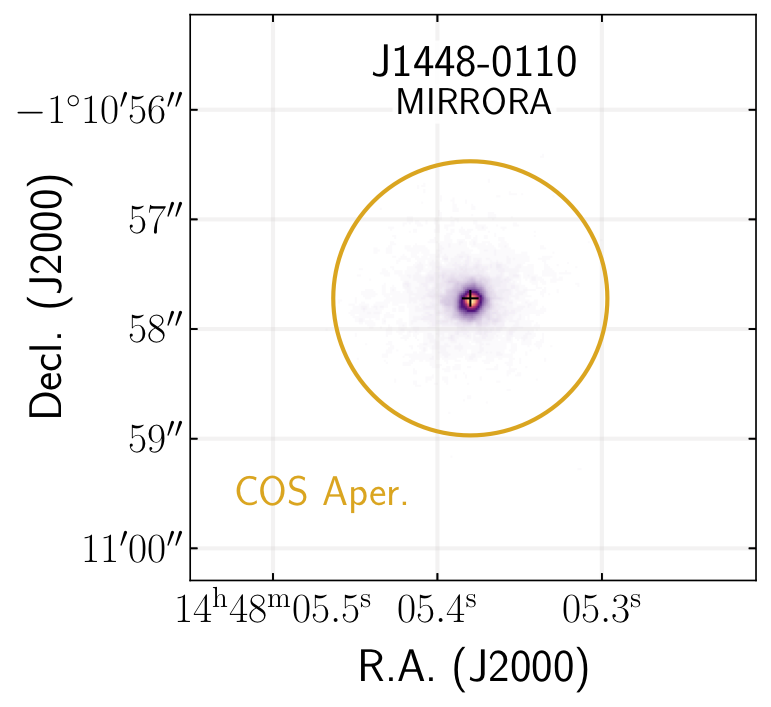

J1448-0110 0.027412 15840 LEE2431F0Q 80 A 0.127 153 LE2431010 G130M 4590 1222 1038.16 1325.99 4 J1448-0110_acq
J1448-0110 0.027412 15185 LDI209SCQ 7 A 0.099 328 LDI2009020 G160M 2597 1623 1392.27 1753.58 4 J1448-0110_acq
J1448-0110 0.027412 15185 LDI209SCQ 7 A 0.099 328 LDI2009010 G185M 2260 1953 1781.05 2022.63 N/A J1448-0110_acq
J1521+0759 0.094261 13017 LC3412IMQ 100 A 0.100 340 LC3412020 G130M 2380 1222 974.19 1249.14 2 J1521+0759_acq
J1521+0759 0.094261 13017 LC3412IMQ 100 A 0.100 340 LC3412010 G160M 4637 1600 1285.73 1624.55 2 J1521+0759_acq
J1521+0759 0.094261 15840 LE2406IEQ 87 A 0.126 158 LE2406020 G185M 2300 1921 1644.0 1871.98 N/A J1521+0759_acq
J1521+0759 0.094261 15840 LE2406IEQ 87 A 0.126 158 LE2406010 G185M 1760 1986 1705.12 1931.11 N/A J1521+0759_acq
J1525+0757 0.075791 13017 LC3404GLQ 400 B 0.189 156 LC3404010 G130M 1060 1222 991.21 1270.76 2 J1525+0757_acq
J1525+0757 0.075791 13017 LC3404GLQ 400 B 0.189 156 LC3404020 G160M 2380 1611 1319.03 1663.69 2 J1525+0757_acq
J1525+0757 0.075791 15840 LE2407C8Q 72 A 0.204 157 LE2407020 G185M 2300 1890 1644.45 1877.37 N/A J1525+0757_acq
J1525+0757 0.075791 15840 LE2407C8Q 72 A 0.204 157 LE2407010 G185M 1784 1941 1690.91 1922.35 N/A J1525+0757_acq
J1545+0858 0.037724 15840 LE2442Y5Q 72 A 0.235 154 LE2442020 G130M 2787 1222 1030.04 1317.67 4 J1545+0858_acq
J1545+0858 0.037724 14120 LCYC04OQQ 93 A 0.179 104 LCYC04010 G160M 4916 1589 1345.21 1701.96 3 J1545+0858_acq
J1545+0858 0.037724 15840 LE2442Y5Q 72 A 0.235 154 LE2442010 G185M 1215 1971 1784.35 2021.12 N/A J1545+0858_acq
J1612+0817 0.149143 13017 LC3413KLQ 100 A 0.111 342 LC3413020 G130M 2380 1318 1010.34 1272.85 2 J1612+0817_acq
J1612+0817 0.149143 13017 LC3413KLQ 100 A 0.111 342 LC3413010 G160M 4637 1611 1234.65 1557.43 2 J1612+0817_acq
J1612+0817 0.149143 15840 LE2414M2Q 109 A 0.112 161 LE2414020 G185M 2300 1900 1545.8 1763.65 N/A J1612+0817_acq
J1612+0817 0.149143 15840 LE2414M2Q 109 A 0.112 161 LE2414010 G225M 4506 2283 1889.27 2092.4 N/A J1612+0817_acq

Download table in csv format

GFWHM Information

GFWHM (Gaussian Full Width Half Maximum)

When possible, the primary science aperture (PSA)+MIRRORA was used for the COS NUV acquisition images. For bright targets (> 2x10-15 erg/cm2/s/A), MIRRORB was used to attenuate the flux and protect the detector. This results in significantly lower counts in the CLASSY acquisition images and, subsequently, poor spatial light profile fits. For this reason, no GWFHM values are reported in some cases when MIRRORB is used.

Lifetime Position Information

Lifetime Position

The COS Far Ultraviolet (FUV) detector has periodically moved lifetime positions to mitigate the effects of gain sag and extend the longevity of the detector (COS Instrument Handbook; Sec 2.1). Currently, the FUV detector is in the fourth lifetime position (LP4), but will be moving to the fifth lifetime position (LP5) in October 2021. For the most updated information on lifetime position, see here.

The COS Near Ultraviolet (NUV) detector does not suffer from gain sag, and therefore has not moved position over time. Observations using the NUV detector (e.g., G185M observations) will have a recorded Lifetime Position of N/A.

Acquisition Image Information

Acquisition Image

When possible, the primary science aperture (PSA)+MIRRORA was used for the COS NUV acquisition images. For bright targets (> 2x10-15 erg/cm2/s/A), MIRRORB was used to attenuate the flux and protect the detector. It should be noted that MIRRORB produces a secondary image that is half the intensity of the primary image and is displaced by 20 pixels (about 0.5 arcsec) in the along-dispersion direction.
